Data sheet
| Fiber Category | OS1 (9/125μm) |
| Fiber Type | Single mode |
| Type of Connector 1 | SC/UPC |
| Type of Connector 2 | No connector |
| Cable Length | 1m |
| Cable Type | Simplex |
| Cable jacket material | OFNR (Optical fiber, nonconductive, riser) |
| Colour | White |
| Insertion Loss | Less than 0.5dB |
| Return Loss | Greater than 55dB |
| Operating temperature | -20℃ ~ +60℃ |
More info

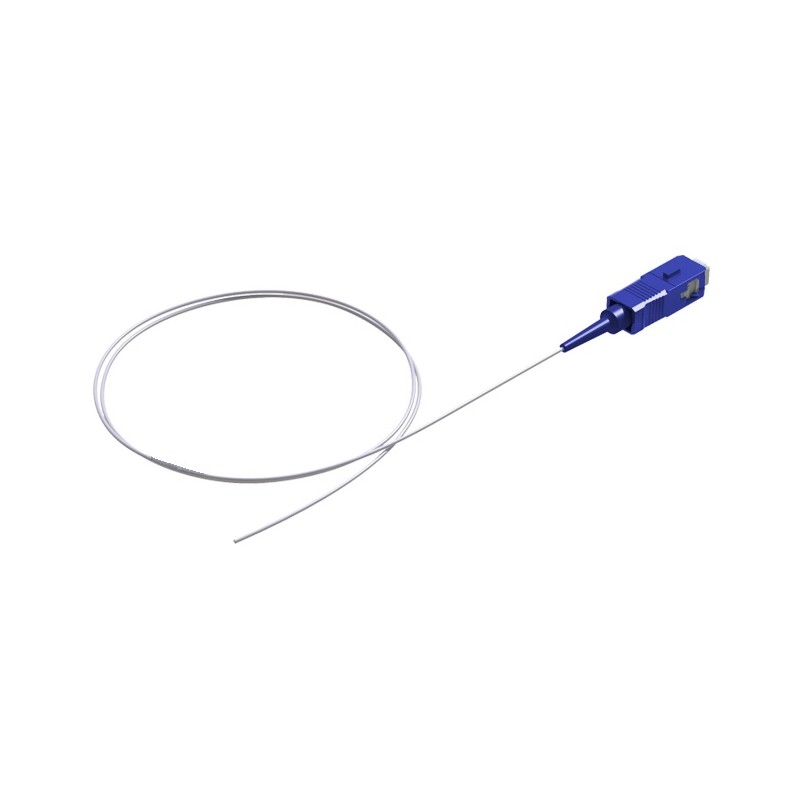

SC Singlemode pigtails provide an optimized and cost effective solution for most applications including enterprise, lan, and datacenters. The pigtails provide 900 micron buffered fibre for easily handling in fibre management such as panels, splice cassettes and wall boxes.
Our pigtails are suitable for fusion-splicing.

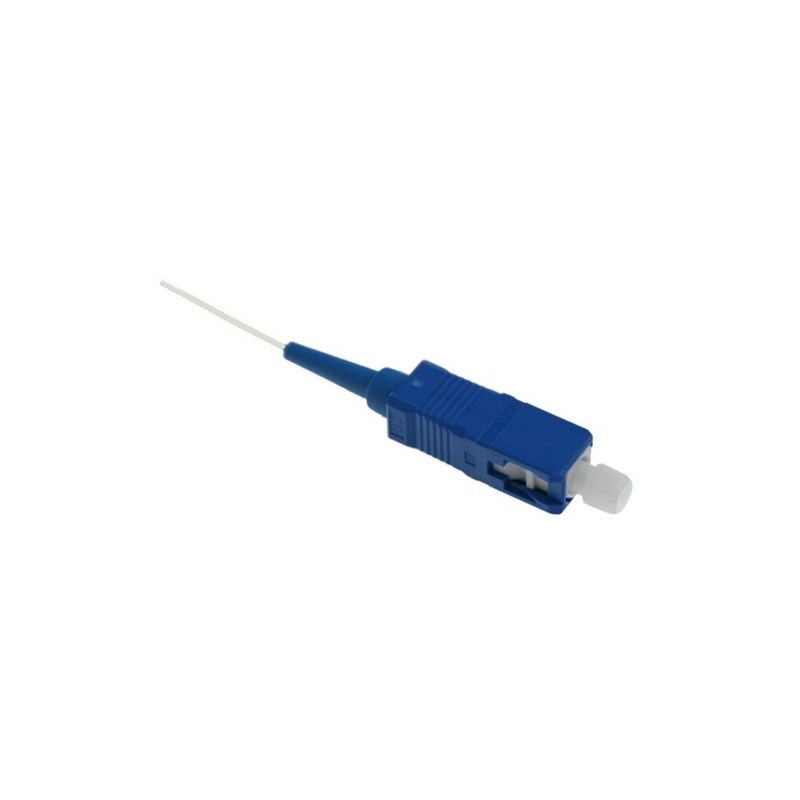

The pigtails are terminated with physical contact zirconia ceramic ferrule connectors. These are manufactured with precision factory mounting and polishing techniques which helps assure high transmission quality.
