ON-LPC-757xx

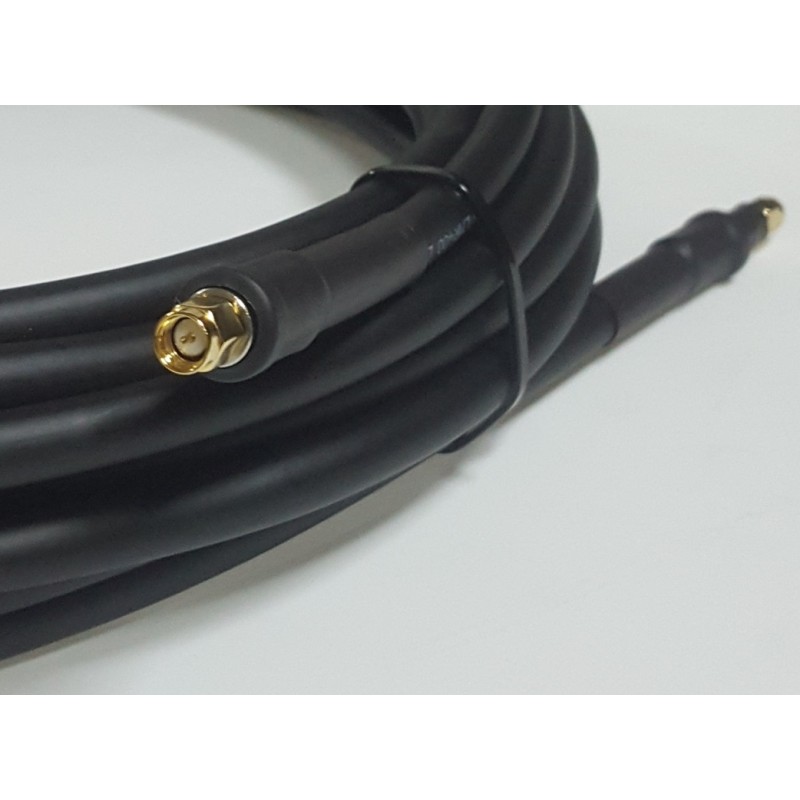

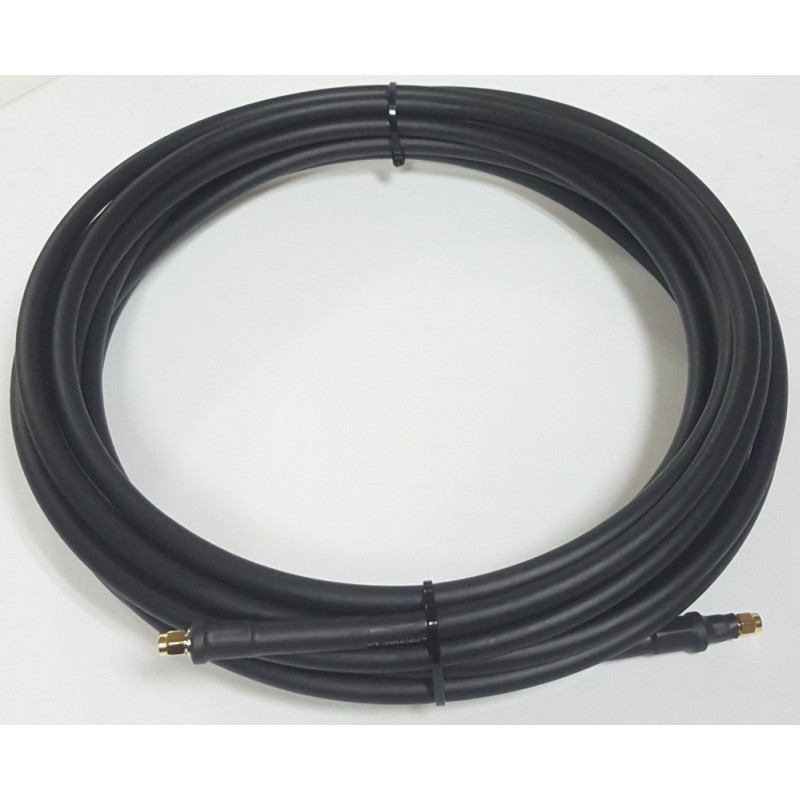

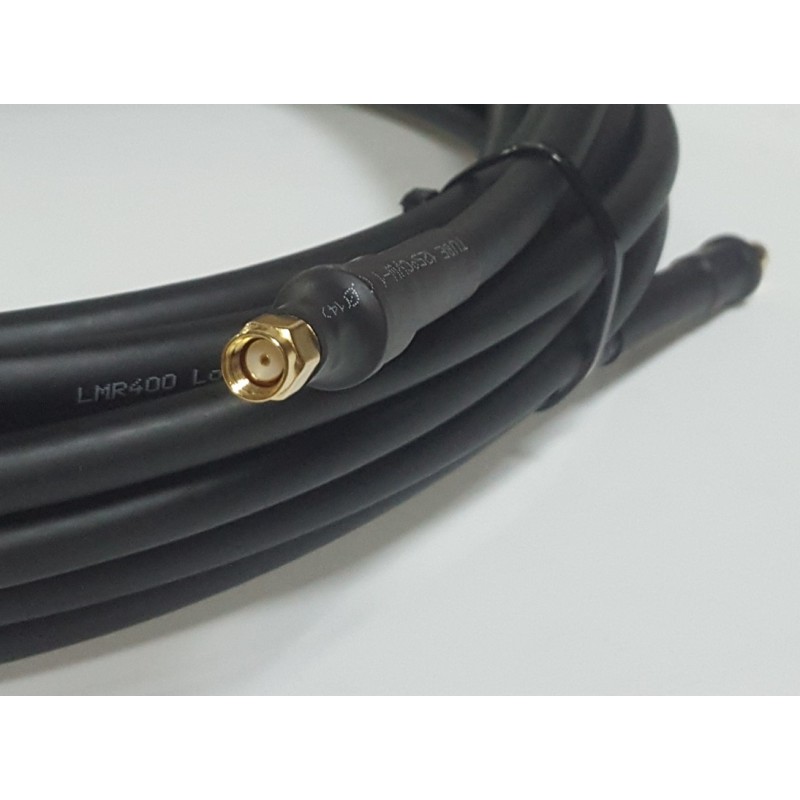

SMA-male to RP SMA-male LMR400 RF Antenna Patch Cable

RF Antenna Cable with RP-SMA male connector on one end and an SMA-male connector on the other end.

• This cable is rated for outdoor use and is also suitable for indoor use.
• Allows interconnection of devices with RP-SMA female and SMA-female interfaces: Antennas, antenna cables and wireless devices.
• For coaxial extension (for better antenna positioning), coaxial interface conversion, coax retrofit applications.
• Onet Cabling Solutions's high-quality soldered terminations of SMA and RP-SMA connectors with soldering provide a low-loss connection with discontinuities kept to a minimum.

SMA Connector Characteristics and Details

• SMA male diameter:
  • SMA male inside diameter is 5/16" (7.9375mm) (the inside diameter where the threads are).

• SMA Gender Determination:  Key Points
  • The gender is referring to the pins inside--not the threads. SMA male has threads on inside.
  • SMA male has a pin inside rather than a socket.

• SMA-Connector Materials Composition:
  • Connector Body: nickel-plated brass (on the connector body).
  • Center Contact: Beryllium Copper, Gold Plated
  • Crimp Ferrule: Copper, Nickel Plated
  • Insulators: PTFE
  • Precision machined for low loss in ISO 9001 facilities

• Other SMA Characteristics and Key Points
  • SMA-male is also called "plug" and SMA female connector is also called "jack"
  • SMA-male connector fits items that have an SMA-female connector.
  • SMA is a round screw-type connector, with medium-sized, threaded coupling connectors that are rated for frequencies from the lowest (DC) up to 18GHz.

• RP-SMA Connector Characteristics and Details

• RP-SMA male diameter:
  • RP-SMA male inside diameter is 5/16" (7.9375mm) (the inside diameter where the threads are).

• RP-SMA Gender Determination:  Key Points
  • The gender is referring to the pins inside--not the threads. RP-SMA male has threads on inside.
  • RP-SMA male has a socket inside rather than a pin, as you might expect, because the RP stands for "Reverse Polarity."  The socket/pin configuration is female when it appears to be male, and vice versa.

• RP-SMA-Connector Materials Composition:
  • Connector Body: nickel-plated brass (on the connector body).
  • Center Contact: Beryllium Copper, Gold Plated
  • Crimp Ferrule: Copper, Nickel Plated
  • Insulators: PTFE
  • Precision machined for low loss in ISO 9001 facilities

• Other RP-SMA Characteristics and Key Points
  • RP-SMA-male is also called "plug" and SMA female connector is also called "jack"
  • RP-SMA-male connector fits items that have an RP-SMA-female connector.
  • RP-SMA is a round screw-type connector, with medium-sized, threaded coupling connectors that are rated for frequencies from the lowest (DC) up to 18GHz.

Compatibility with wireless applications:

• All WiFi standards: 2.4GHz and 5GHz applications: 802.11AC, 802.11N, 802.11G, 802.11B, 802.11A
• Cellular Wireless LTE / 4G, GSM / 3G WiMax, 5G: Data and voice applications
• IoT wireless, automation & Machine to Machine (M2M): Bluetooth, ZigBee, RFID, LoRa, LTE-m, NB-IoT.
• Compatible with all Helium miners used in North America, including Bobcat miners, Sensecap miners and all other Helium LongFi miners, as are all of our antenna cables and adapters with RP-SMA-male connectors.

Our RP-SMA-male to SMA-male cable range of frequency band compatibility (from 0GHz to 18GHz), consistently low broadband VSWR, and impedance matching to 50 Ohm gear, makes them compatible and compliant for all the above applications.
