N-male to SMA-male LMR400 RF Antenna Patch Cable

ON-LPC-75603 … N-male to SMA-male Antenna Cable 3m

ON-LPC-75605 … N-male to SMA-male Antenna Cable 5m

ON-LPC-75607 … N-male to SMA-male Antenna Cable 7m

ON-LPC-75610 … N-male to SMA-male Antenna Cable 10m

ON-LPC-75615 … N-male to SMA-male Antenna Cable 15m

More details

Data sheet

Type of Connector 1 N male
Type of Connector 2 SMA male
Outer sheath colour Black
Cable jacket material PE Polyethylene
Application Type Helium Miners, IoT wireless, LoRa, LTE

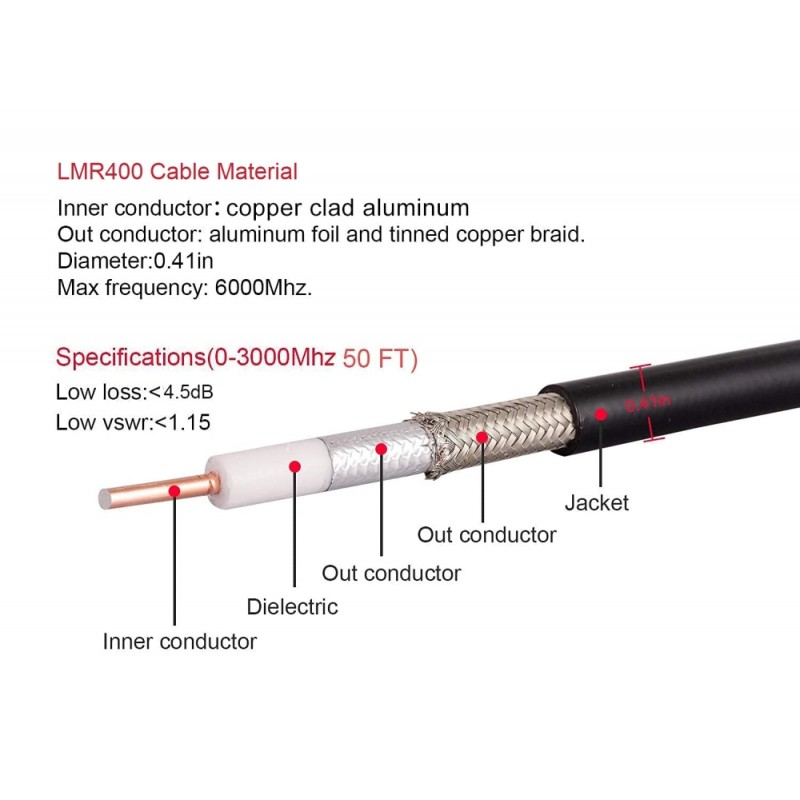

Conductor Material Copper Clad Aluminum
Shielding Type Tinned aluminum braid

More info

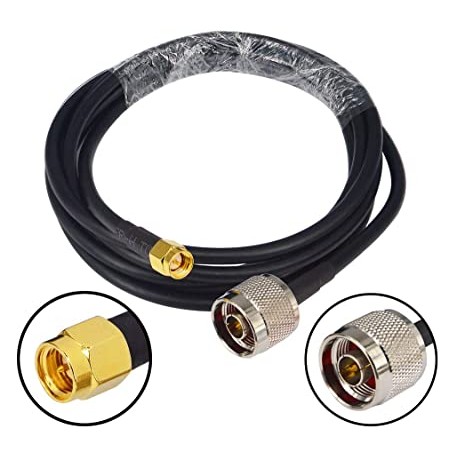

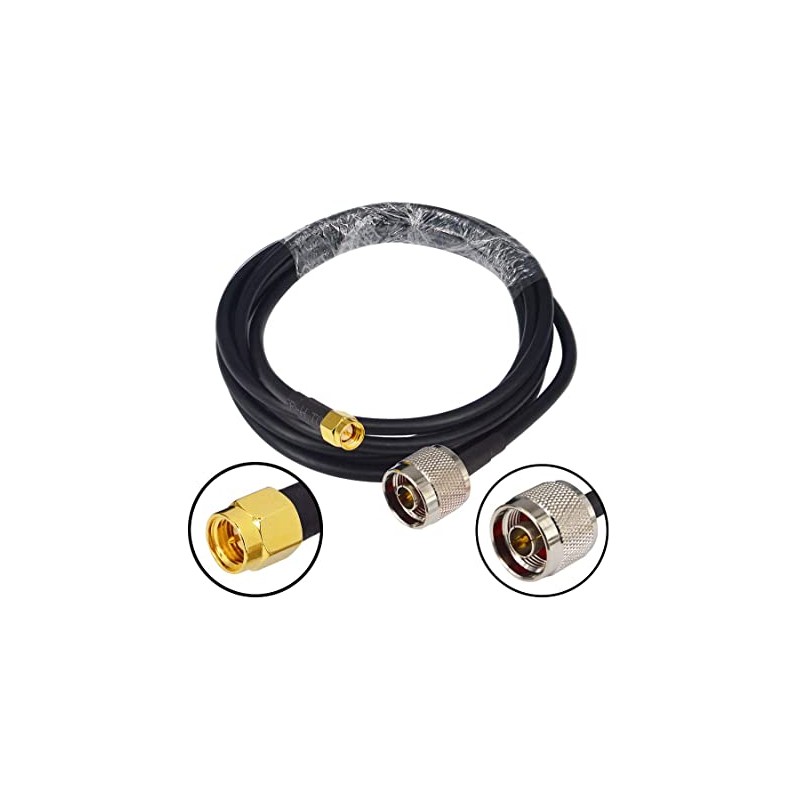

N-male to SMA-male LMR400 RF Antenna Patch Cable

RF Antenna Cable with SMA male connector on one end and an N-male connector on the other end.

  • This cable is rated for outdoor use and is also suitable for indoor use.
  • Allows interconnection of devices with SMA female and N-female interfaces: Antennas, antenna cables and wireless devices.
  • For coaxial extension (for better antenna positioning), coaxial interface conversion, coax retrofit applications.
  • Onet Cabling Solutions's high-quality soldered terminations of Type-N and SMA connectors with soldering provide a low-loss connection with discontinuities kept to a minimum.

N-male Connector Characteristics and Details:  Durable, weatherproof connection

  • Our N connectors provide a consistent performance from 900MHz to 12.5 GHz.
  • The N-male connector is knurled.
  • N-Type connectors are the largest of the RF connector types, and are usually found on large antennas, especially for outdoor use.
  • Our N-Type connectors feature threaded coupling mechanisms and are fully interchangeable with N-Type connectors made to the MIL-C-39012 specification. These connectors are used in all systems where excellent RF and mechanical performance is critical.
  • N materials composition:
  • Connector Body: Nickel-Plated Brass: The most corrosion-resistant of all plated brass alloys (better than gold-plated).

  • Center Contact: Beryllium Copper, Gold Plated

  • Crimp Ferrule: Copper, Nickel Plated

  • Insulators: PTFE

SMA Connector Characteristics and Details

  • SMA male diameter:

  • SMA male inside diameter is 5/16" (7.9375mm) (the inside diameter where the threads are).
  • SMA-Connector Materials Composition
    • Connector Body: nickel-plated brass (on the connector body).
    • Center Contact: Beryllium Copper, Gold Plated
    • Crimp Ferrule: Copper, Nickel Plated
    • Insulators: PTFE
    • Precision machined for low loss in ISO 9001 facilities
  • Other SMA Characteristics and Key Points
    • SMA-male is also called "plug" and SMA female connector is also called "jack"
    • SMA-male connector fits items that have an SMA-female connector.
    • SMA is a round screw-type connector, with medium-sized, threaded coupling connectors that are rated for frequencies from the lowest (DC) up to 18GHz.

Compatibility with wireless applications:

  • All WiFi standards: 2.4GHz and 5GHz applications: 802.11AC, 802.11N, 802.11G, 802.11B, 802.11A
  • Cellular Wireless LTE / 4G, GSM / 3G WiMax, 5G: Data and voice applications
  • IoT wireless, automation & Machine to Machine (M2M): Bluetooth, ZigBee, RFID, LoRa, LTE-m, NB-IoT.
  • Compatible with all Helium miners used in North America, including Bobcat miners, Sensecap miners and all other Helium LongFi miners, as are all of our antenna cables and adapters with RP-SMA-male connectors.

SMA-male to N-male cable range of frequency band compatibility (from 0GHz to 18GHz), consistently low broadband VSWR, and impedance matching to 50 Ohm gear, makes them compatible and compliant for all the above applications.
