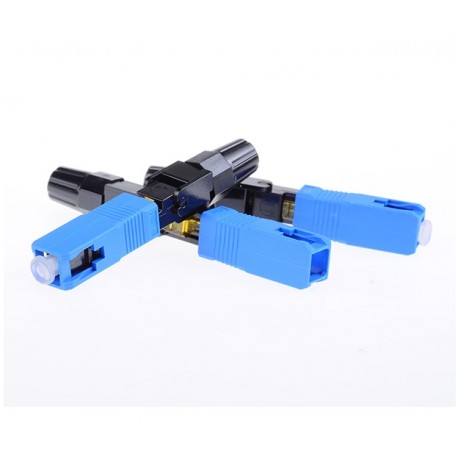

ON-FOC-102

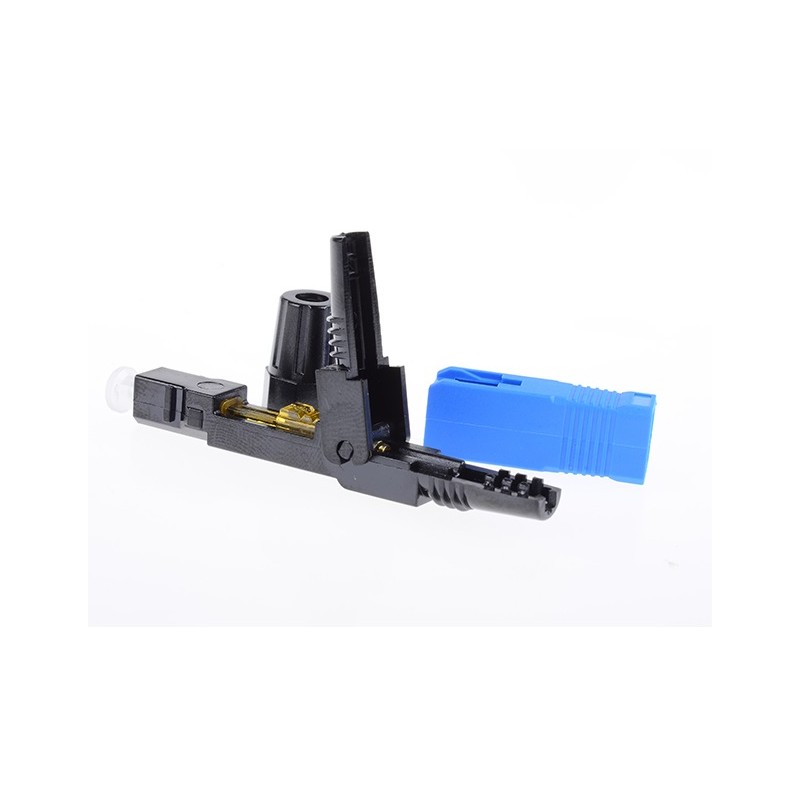

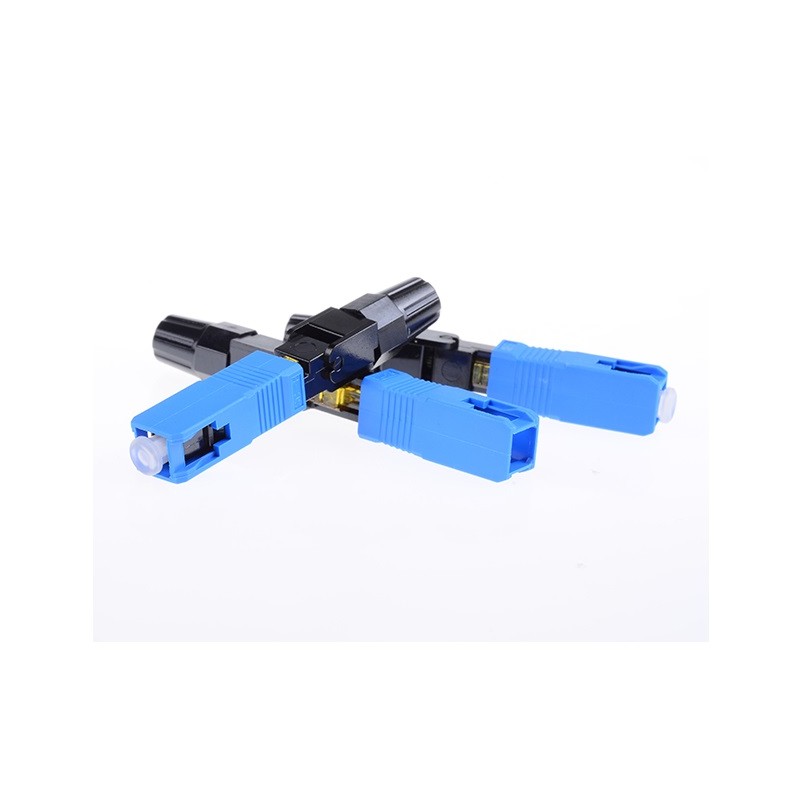

SC/UPC Fiber Optic Quick Connectors for FTTx applications

Specifications

• Optical fiber diameter : φ125um (657A&657B)

• Tight buffer diameter : φ250um

• Fiber mode : Single mode

• Operation time : About 10s (excluding fiber cutting)

• Insert loss : ≤0.3dB (1310nm & 1550nm)

• Return loss : ≥45dB

• Fastening strength of naked fiber : ≥ 5N

• Tight clamping force cladding : ≥ 8N

• Tensile strength : ≥ 50N

• Reusage (times) : ≥1000

• Using temperature : -45°C~+80°C

• Applicable for 3.1x2.0mm drop cable or 3.0/2.0/0.9mm cable

• Quick connectors can be quickly and easily assembled.

• High return loss & low insertion loss

• Great repetitiveness and exchangeability.

• Very portable and cost effective

• Stable temperature performance.


• Reliable and superior optical performance

Applications

• Can be mounted into the patch panels through standard SC adapters

• Distribution frames

• Maintenance or emergent restoration of fiber networks

• FTTH Outlets

• Connection at the desk for LAN environments
