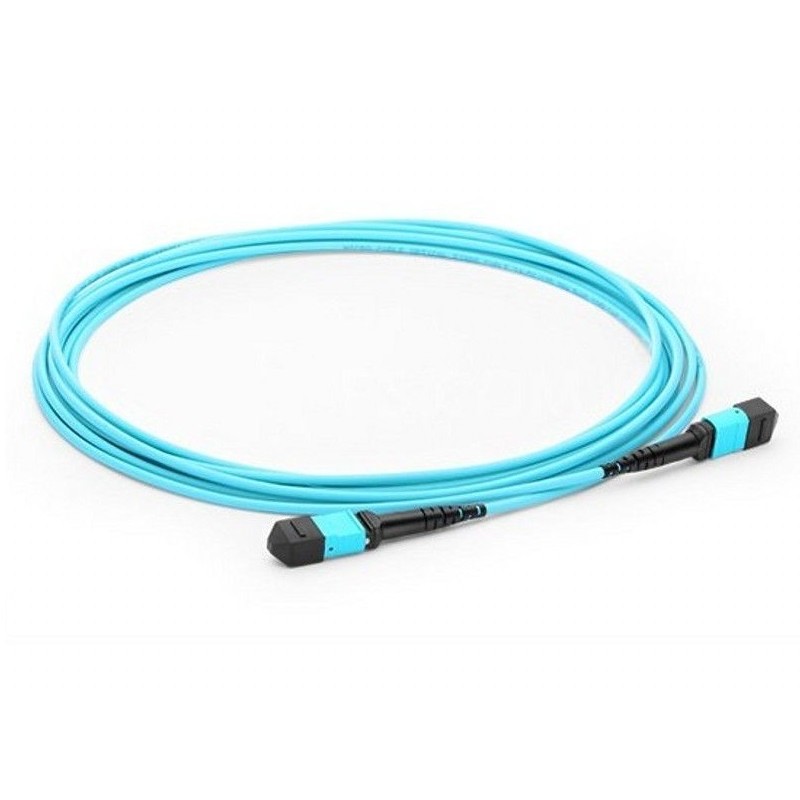

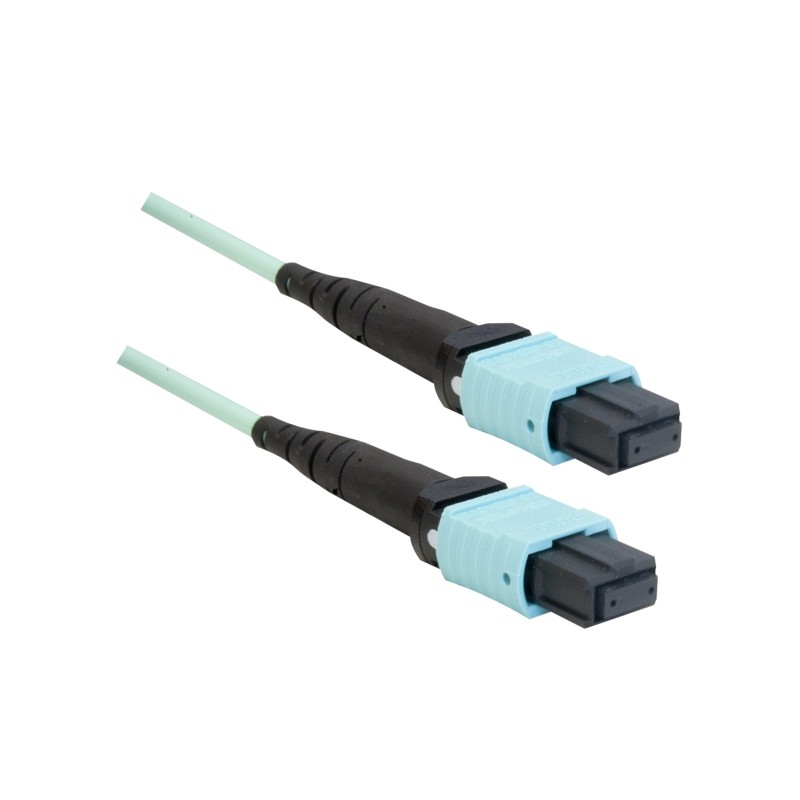

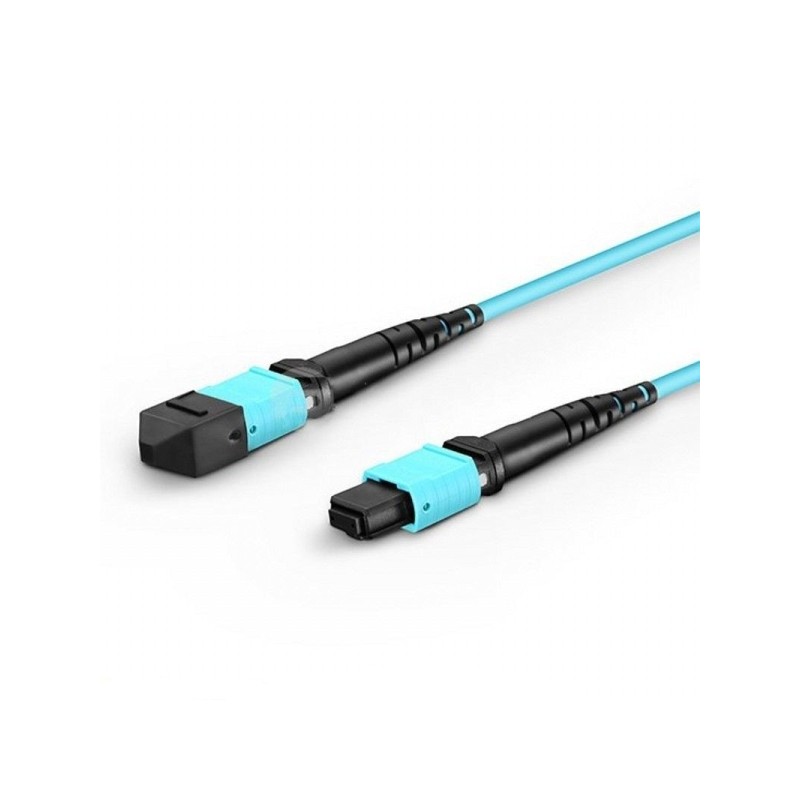

MPO Female to Female 40GBase-SR Multimode OM3 QSFP+ Fiber Optic Cable 12 Fibers 1 meter, Type B
Data sheet
| Fiber Category | OM3 |
| Fiber Type | Multi mode |
| Number of Fiber Cores | 12 fibers |
| Type of Connector 1 | MPO Female (un-pinned) |
| Type of Connector 2 | MPO Female (un-pinned) |
| Cable Length | 1m |
| Outer sheath colour | Aqua |
| Outer diameter per core | 3mm |
| Cable jacket material | LSZH (Low Smoke Zero Halogen) |
| Strength member | Aramid Yarn |
| Operating temperature | -20℃ ~ +60℃ |
| Cable Polarity | Type B |
| MPO Attenuation | ≤0.5dB |
| MPO Return Loss | ≥25dB |
| OFL bandwidth | ≥ 1500 MHz.km @ 850nm |
| EMB | ≥2000MHz.km @ 850nm |
More info
MPO F/F 40GBase-SR Multimode OM3 Fiber Optic Cable 12-Fiber 1 meter Polarity Type B
MPO (MTP) female to female trunk cables (patch cables) with type-B polarity are used to interconnect QSFP+ transceiver modules to perform 40G data transmission speed.
QSFP+ transceiver modules have interface type of MPO/MTP with 12 fibres. This interface accomplishes 40G speed by utilizing 4 x 10G channels. This means 8 pieces of fibre cores, four of which is for TX and other four is for RX.
This type of polarity connection is called Type B
The MPO tails are protected on both sides with a clear plastic protection sleeve which can be closed with a re-usable tie wrap.
Application
- Ethernet IEEE 802.3;
- 10/40/100GbE / Fiber Channel PI5;
- 4-8-16G / InfiniBand Architecture spec Volume 2
