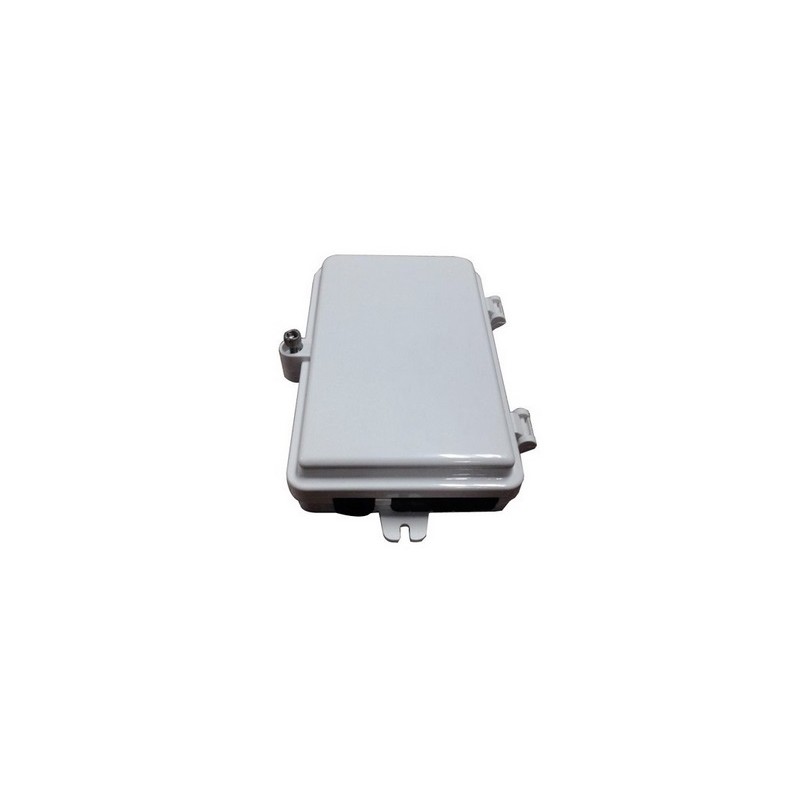

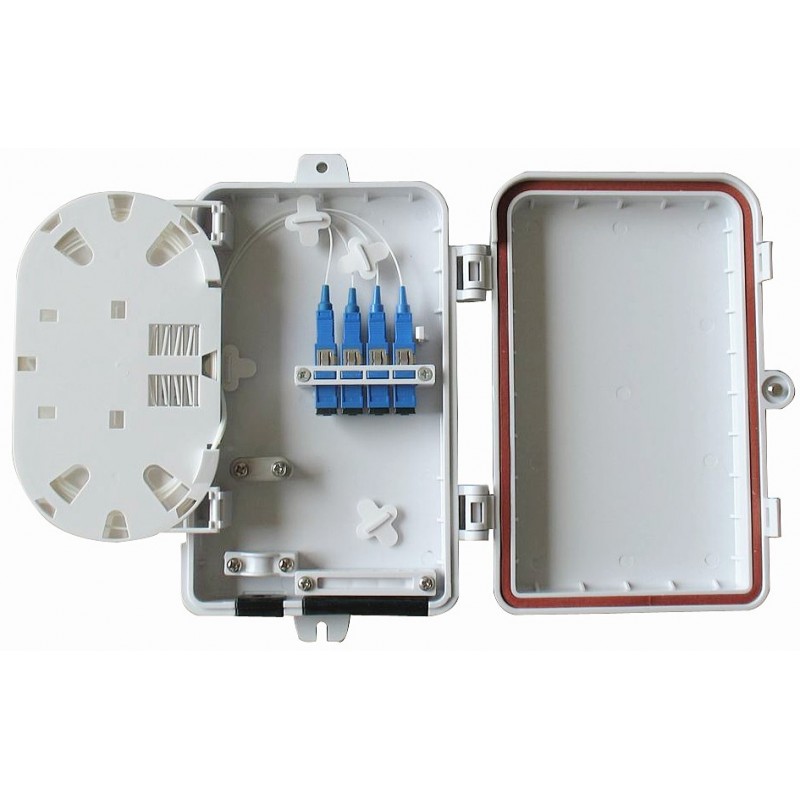

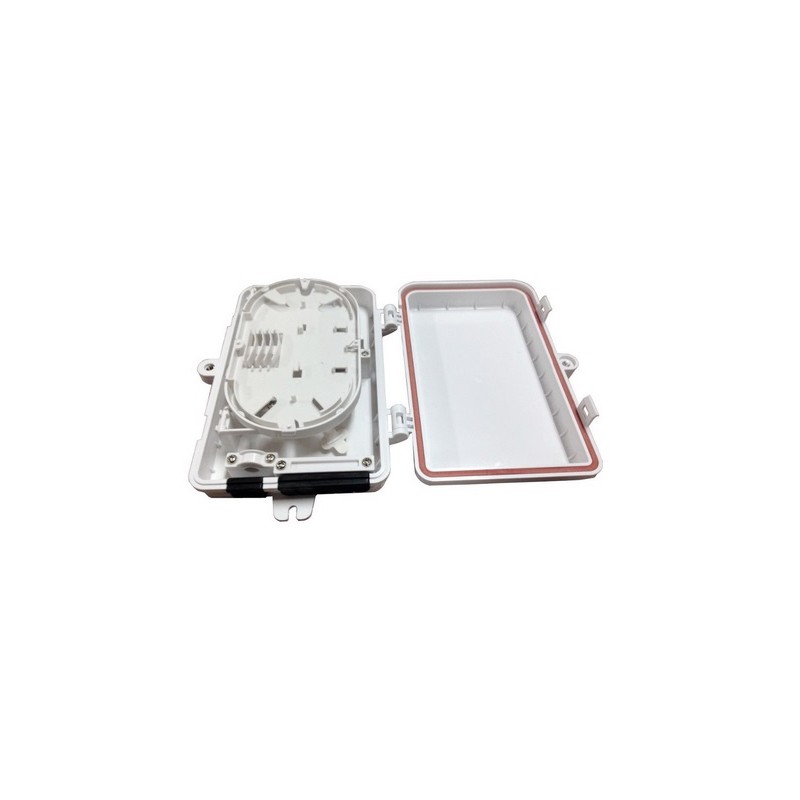

FTTH Fiber Optic Termination Box, 4 Ports SC Simplex, Outdoor Type

More details

Data sheet

Type of material ABS Plastic
Number of cable entry points 1
Number of Splice Trays 1
Capacity 4 cores with SC SX, and 8 cores with LC DX adapters
Application Type Outdoor
Mounting Wall and Pole mounting
Protection Class IP66
Dimension 212(H)mm × 142(W)mm × 40(D)mm
Weight 0.2Kg
Operating temperature -20℃ ~ +60℃

More info

FTTH Fiber Optic Termination Box, 4 Ports SC Simplex, Outdoor Type

Description:

ON-FTTH-B04A is suitable for FTTH usage, in splitting and splicing of optical fiber.

ABS plastic, light weight

Reasonable design for fiber arrangement, bend radius more than 30mm

Suitable for 1pcs 4 way splitter or 1pcs 8 way splitter with LC connector (Steel tube type)

Main Parameters:

  • Operate temperature:-5℃+40℃
  • Relative humidity: ≤90% (+30℃)
  • Atmospheric pressure: 70Kpa-106Kpa
  • Storage Temperature:-40℃+70℃
  • Optical parameters:
  • Insertion loss≤0.3dB;
  • Excess loss:≤0.2B;
  • Return loss≥50dB
  • IP standard:IP66

Dimension:

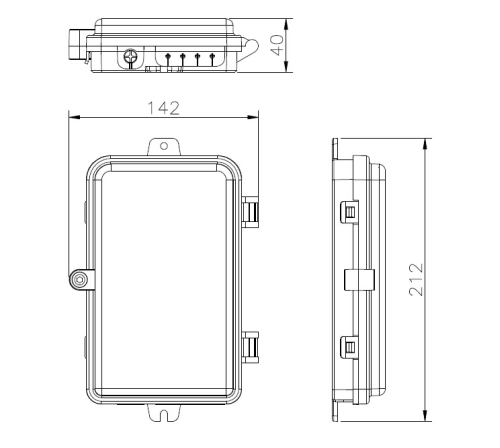

212(H)mm×142(W)mm×40(D)mm (Pic.1)

Dimension

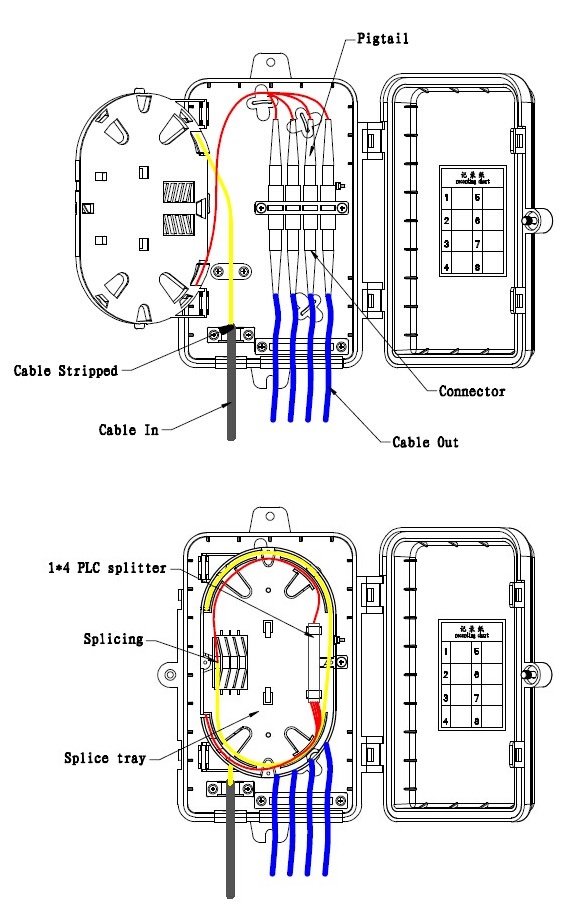

Fiber arranging drawings:

Drawings

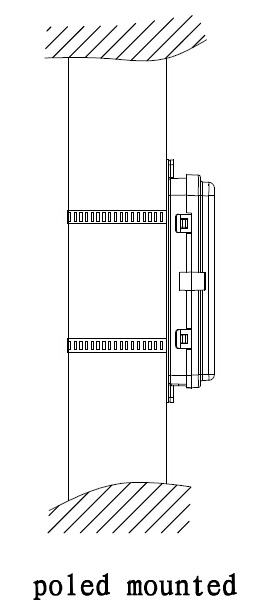

Pole mounted using drawings:

pole mounting
