Data sheet
| Type of material | Cold-roll steel, electrostatic painting |
| Number of cable entry points | 2 |
| Number of cable exit points | 2 |
| Capacity | 24 fibers with SC DX or 48 fibers with LC Quad adapters |
| Application Type | Indoor |
| Mounting | Wall Mounting |
| Dimension | 310(H)mm × 275(W)mm × 47(D)mm |
| Colour | Black |
| Housing | Metal |
| Operating temperature | -20℃ ~ +60℃ |
More info

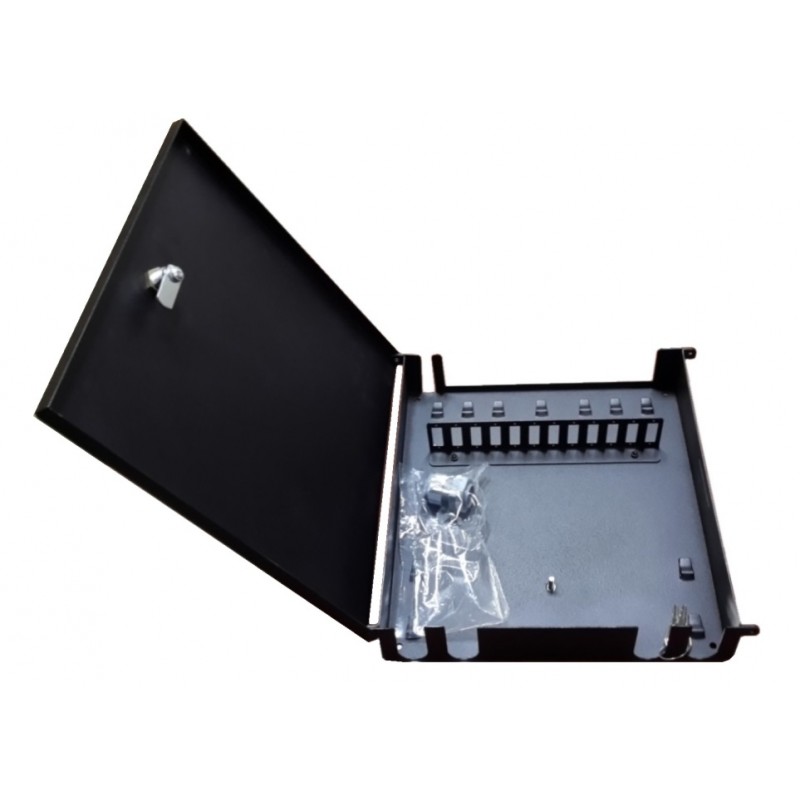

Wall-mount Fiber Optic Patch Panel 12 SC DX
Description:
ON-TW101 is a fiber optical patch panel which is used to terminate optical cables and provides a centralized location to manage network connections.
It comes as unloaded, and can accommodate up to 12 SC duplex or LC QUAD adapters.
This wall mount fiber patch box is designed to provide optimal protection for your fiber optic applications.
This fiber optic termination panel includes two cable entry points in the back of the fiber housing fitted with rubber grommets to prevent damage.
It includes all necessary mounting hardware for installation.
