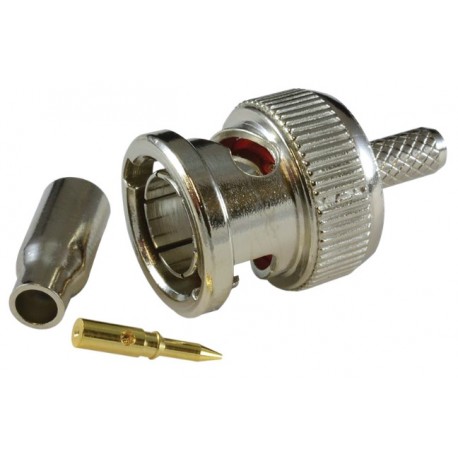

ON-BNCM-RG179
ON-BNCM-RG179
New product

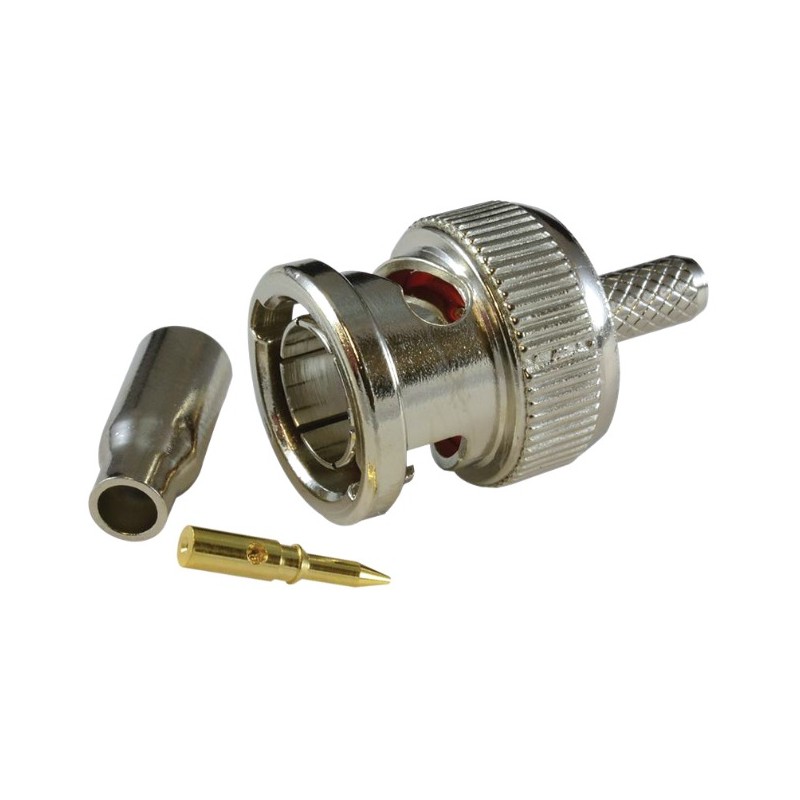

BNC Straight Plug Male Connector for RG179
Crimp Type, 75Ω, Brass
Data sheet
| Connector Type | BNC |
| Connector Body Style | Straight Plug |
| Connector Gender | Male |
| Attachment Method | Crimp/Solder |
| Impedance | 75Ω |
| Coaxial Cable Type | RG179 |
| Contact Material | Brass |
| Contact Plating | Gold Plated Contacts |
| Frequency Max | 11GHz |
More info
ON-BNCM-RG179 BNC Straight Plug for RG179, Crimp Type, 75Ω, Brass
75 Ohm BNC Male (Plug) Connector For RG179
ON-BNCM-RG179 BNC male coaxial connector from Onet Cabling Solutions has an interface type of RG179 and a 75 Ohm impedance. This BNC male connector uses shield attachment of crimp/solder attachment for the contact. Male BNC coaxial connector provides a maximum frequency of 11 GHz.
BNC male coaxial RF connector has a ptfe dielectric type and a VSWR of 1.3:1. This BNC coaxial connector has a brass body with nickel plating. ON-BNCM-RG179 BNC connector uses brass contact and a nickel plating material. The BNC male coaxial RF connector is RoHS compliant.

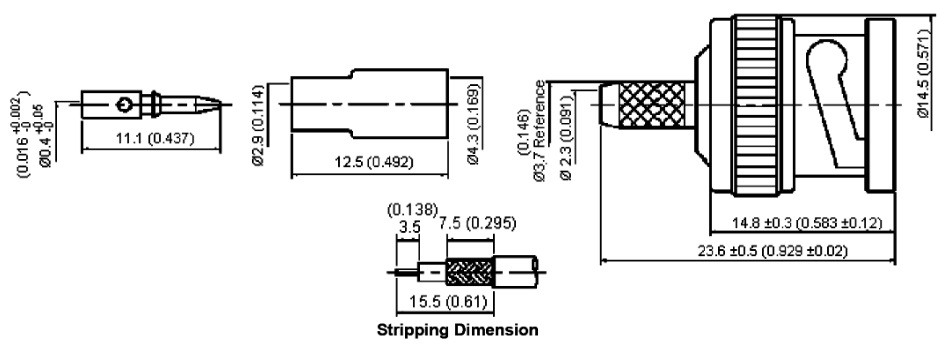

DRAWING
